Introduction
NEW
Do you need services with extra diversity/resilience?
Check out the new port diversity feature here.
Ports are used to terminate circuit connections. Under the On Demand model, ports are a separate component - unlike the traditional data networking model where ports are an integral part of a circuit connection.
At on-net and hybrid on-net locations, ports are available in 1Gbps & 10Gbps speeds. In key data centres 100Gbps ports are also supported. The full physical On Demand port bandwidth (e.g. 1Gbps) is reserved between the customer’s site and Colt’s core network. Logical ports (e.g. 100Mbps on a 1Gbps physical port) are no longer available for new orders.
At off-net locations, connectivity is based on Ethernet access from one of our carrier partners - therefore a wider granularity of bandwidths is available (10Mbps-10Gbps in multiple steps).
Colt supports a full range of physical 1Gbps, 10Gbps & 100Gbps port specifications:
| 1000Base-LX | 10GBASE-LR | 100GBASE-LR4 |
| 1000Base-SX | 10GBASE-SR | 100GBASE-SR4 |
| 1000BaseT | ||
Where a 1000Base-T interface is required the port is configured with autonegotiation enabled. Colt does not support the manual configuration of 10Base-T or 100Base-T ports by disabling autonegotiation; autonegotiation is always enabled by default.

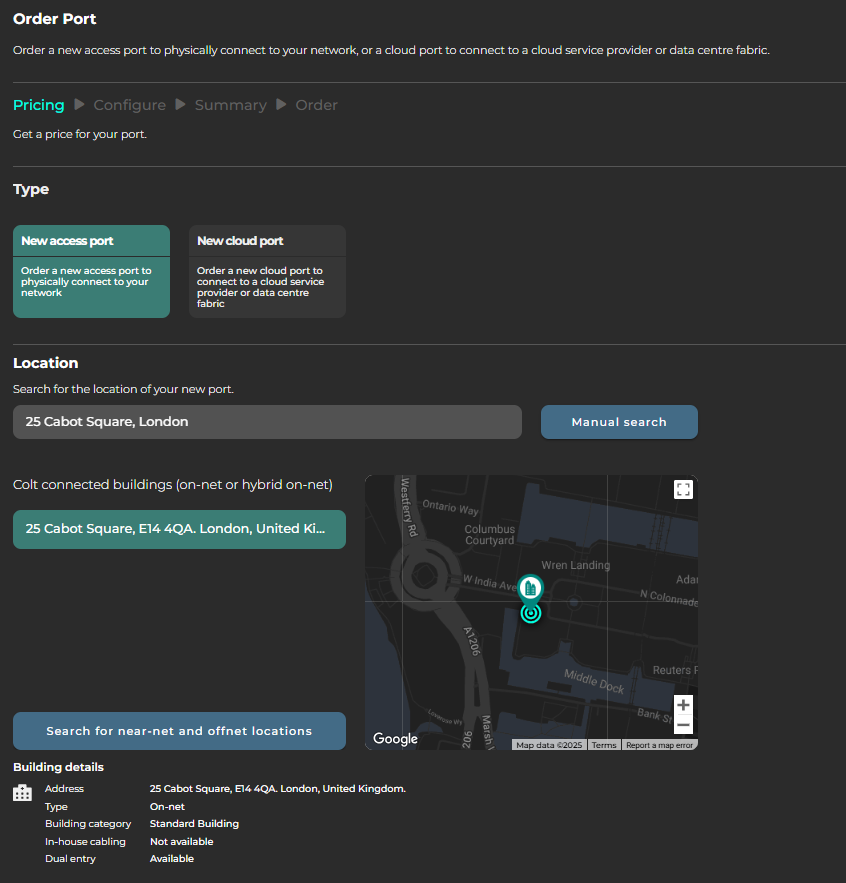

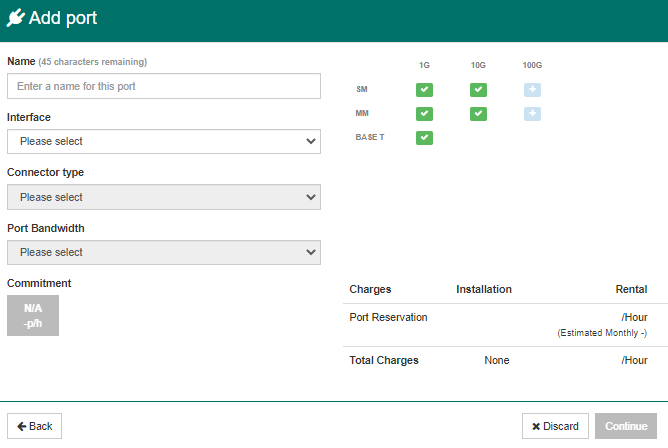

In the On Demand portal, ports can be requested as a standalone order or requested as part of the connection order flow. In both cases, the basic process for ordering a port is the same. Ports are requested by first entering the address of the location you wish to connect.

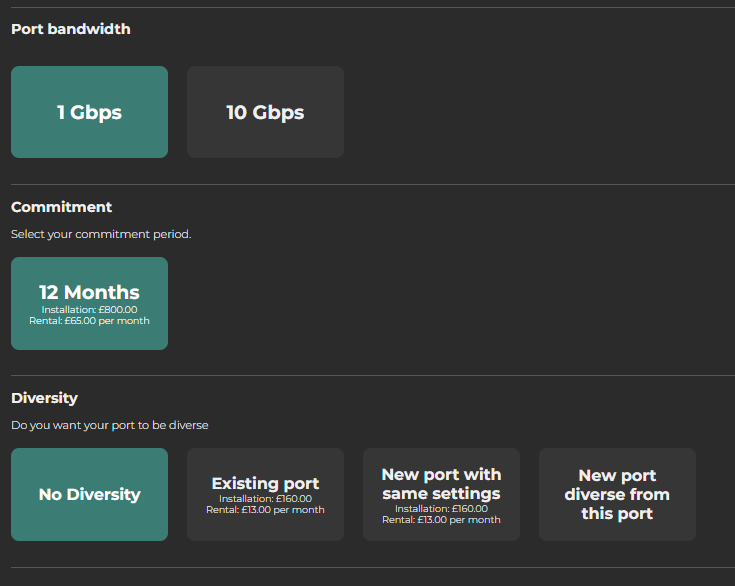

Select a bandwidth and commitment - 12 months in on-net enterprise buildings, 3/12 months in on-net data centres and 12-60 months for off-net and hybrid on-net locations. Then choose a diversity option - please refer to the "Resilience & Diversity" section for further details.

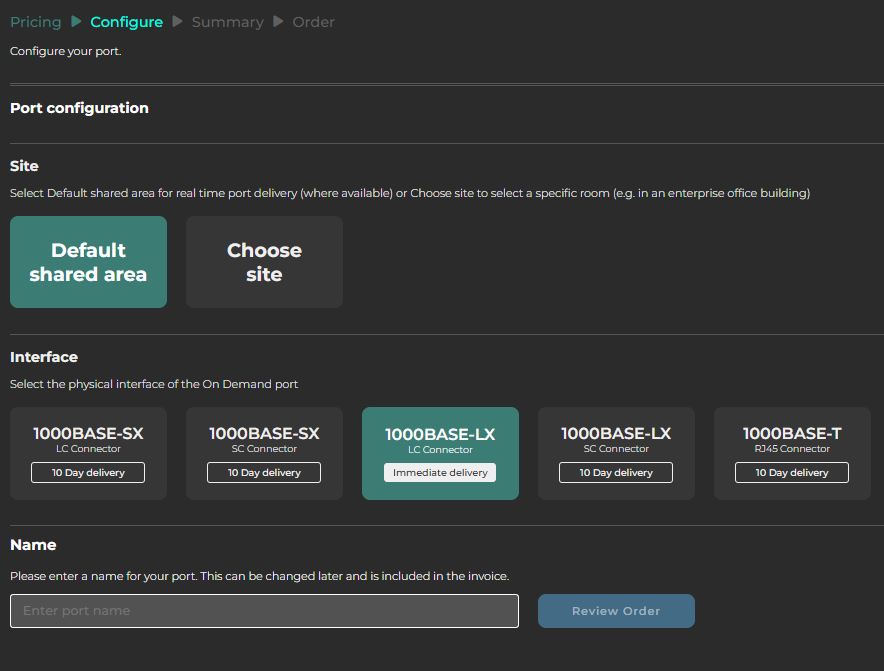

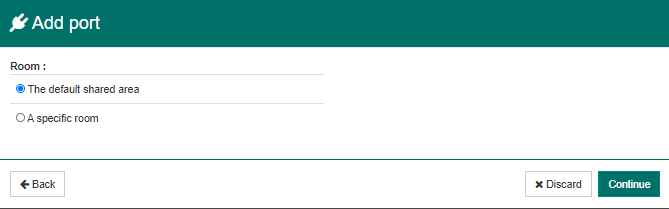

New ports can be requested in the default shared area (e.g. an MMR in a data centre) or in a specific room – for example, the comms room on the third floor of an enterprise building. Customers are encouraged to select the default shared area as the On Demand platform will automatically select ports that are available via near real time delivery.
The On Demand portal shows ports that can be reserved in near real time (flagged as "immediate delivery" ) and ports that require a network capacity build are shown with the typical delivery lead time.
IMPORTANT! On Demand ports stay in a deactivated state until a circuit connection is added to the port. Customers can request that a new port is tested prior to a circuit being added by raising a ticket via the standard support process.
Port charges
Under the default On Demand flex pricing model, customers are required to make a 3 or 12 month commitment. Monthly recurring rental charges then apply.
In enterprise buildings, the minimum commitment is 12 months – customers are also charged a small installation fee to cover the cost of adding the new port capacity.
Under the fixed pricing model, customers are not required to make a commitment on the port. Under the fixed model, .Customers are charged a one off installation fee when a new port is added.
Please refer to the pricing section for more further details.
Requesting a cross connect
At data centre locations, customers can order a cross connect directly from the data centre operator, or order from Colt - where Colt manages the cross connect on the customer's behalf.
Ordering a cross connect from a data centre operator

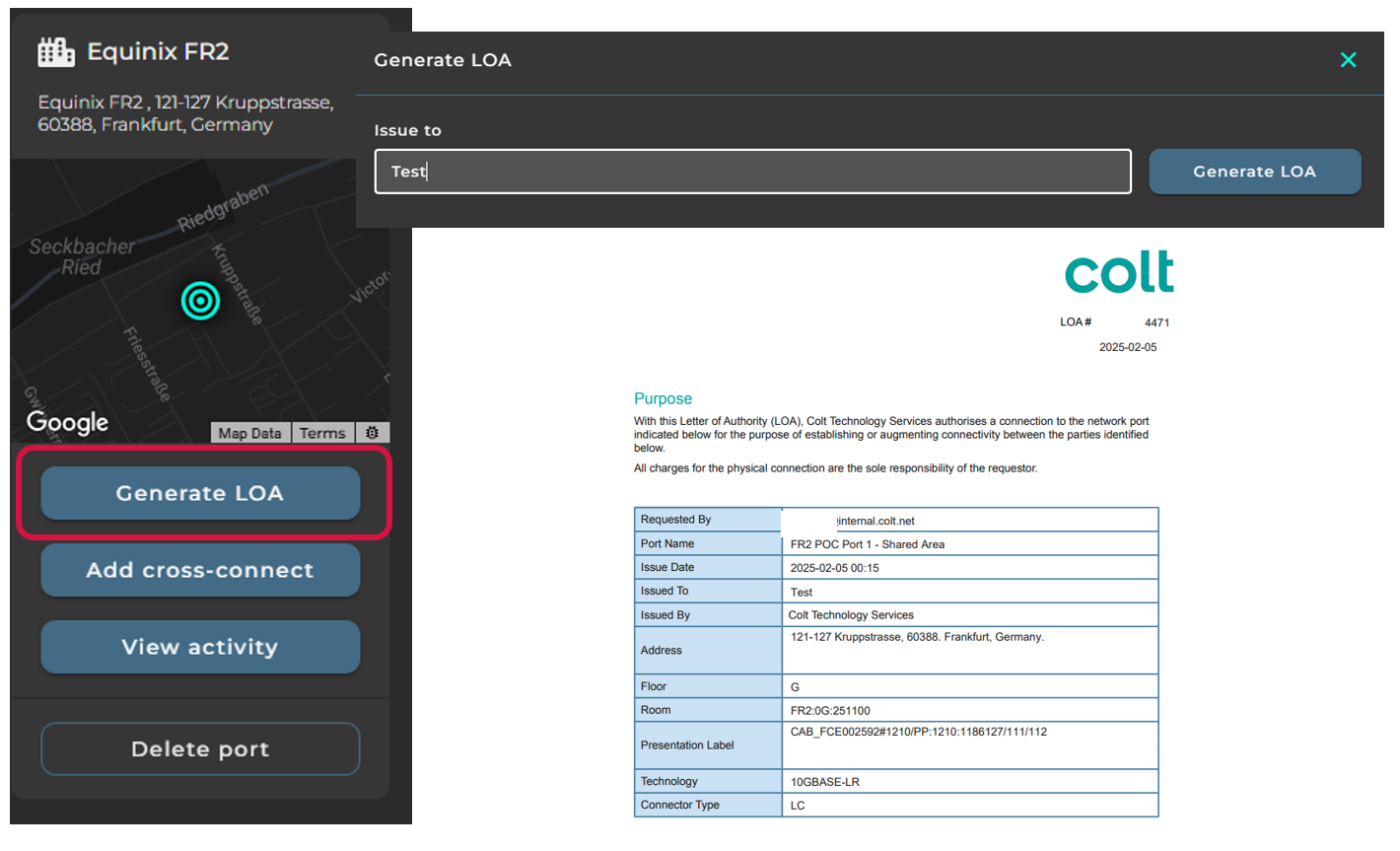

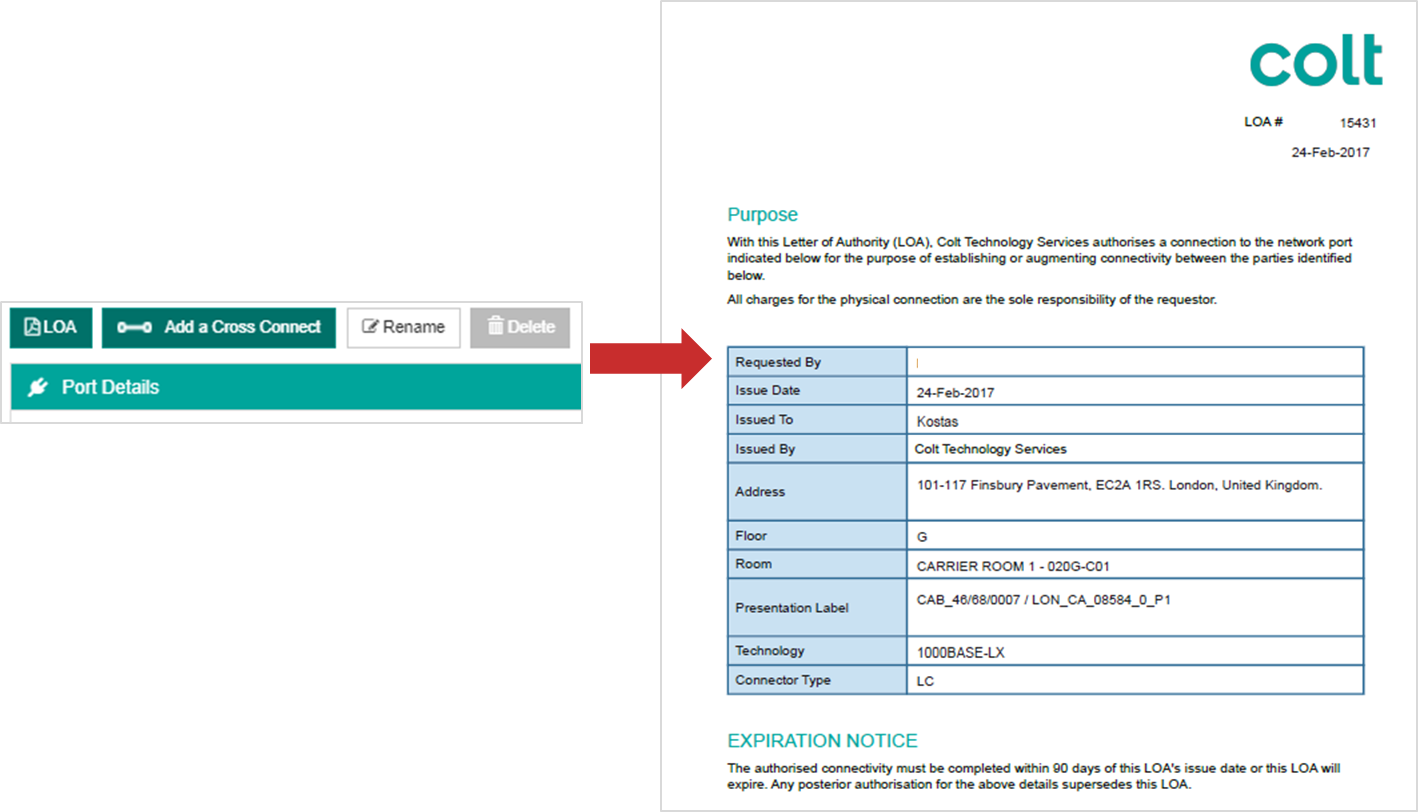

At data centre locations, customers are able to generate an LOA from the On Demand portal to grant the Data Centre permission to access the Colt rack to facilitate the termination of DC cross connects.
The LOA should be submitted to the DC operator when the cross connect order is placed. Please note that the LOA can only be generated AFTER the delivery of the port is completed.
Ordering a cross connect from Colt
Alternatively, customers can request a fibre cross connect in a data centre via the On Demand platform, which will result in Colt placing a request being placed on the data centre operator for a cross connect between the specified On Demand port and the demarcation point in the customer rack.

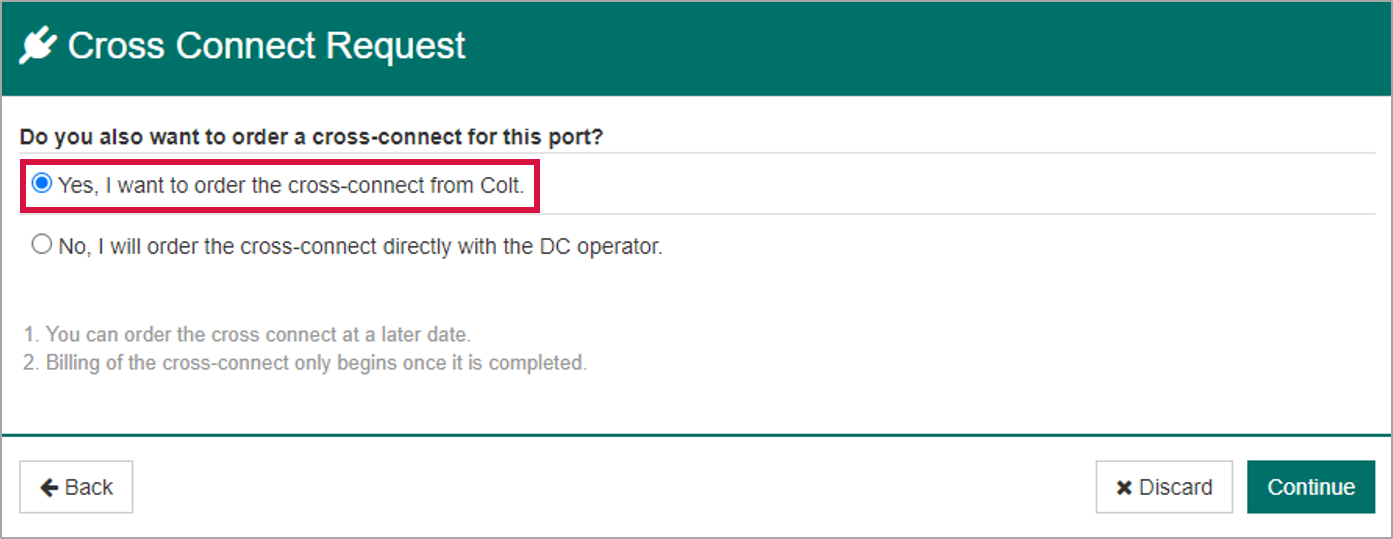

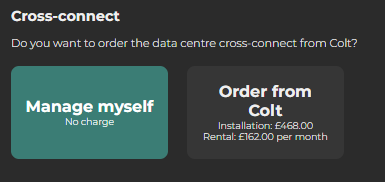

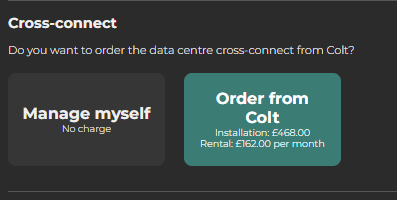

When a new port is requested, customers are asked whether a cross connect is required.
Please note that only fibre cross connects are supported - copper cross connects are not supported.

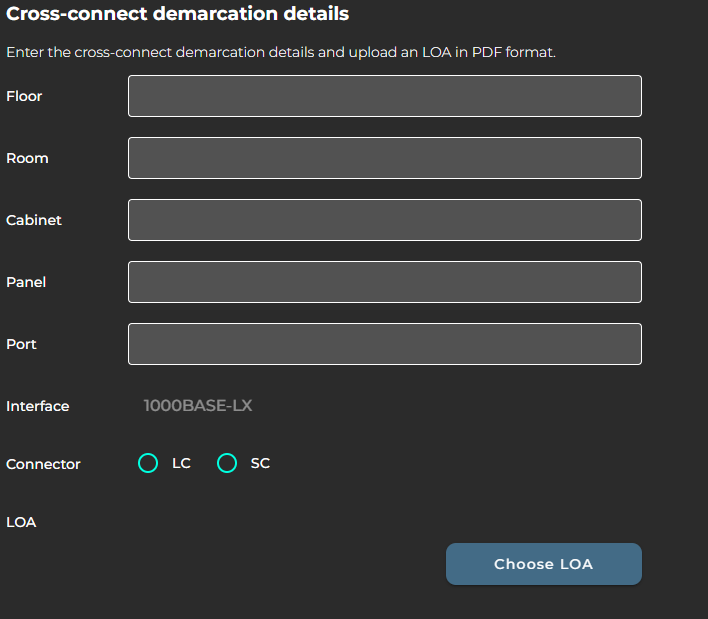

Where a cross connect is requested, customers are required to enter the demarcation details and are also required to upload a letter of authority to grant Colt permission to place a cross connect order to the customer rack. The demarcation details and LOA are mandatory.
Cloud ports
Cloud connections must be terminated on a cloud port - either a hosted cloud port (for services handed over on a shared interconnect to the CSP) or a dedicated cloud port (for services handed over on a CSP port dedicated to a single customer).
Please refer to the cloud connectivity section for further details.
Multiservice functionality
All On Demand ports are capable of supporting multiple service types, using VLAN segregation. Example use cases include:
For further details on VLAN configurations supported on the Colt On Demand platorm, please refer to the On Demand Connections section.
